WF-MA80-2
Product introduction
Main parameter
?Chipset：AIC8800D80
?Module dimension(mm)：12*12*2.5mm
?WiFi Versions:802.11 a/b/g/n/ac/ax
?BT Versions:V5.4
?Operating temperature: -20~80℃
?Mac:Single
?Bandwidth(MHz):20/40/80MHz
?Frequency Range(GHz):2.4/5GHz
?BT Protocol:HFP, A2DP, PBAP, SPP, GATT, etc
?Operating Voltage:3.3V
?IO Voltage:1.8/3.3V
?Encryption Mode:MPA3
?Interface:SDIO,UART,PCM/I2S,USB
?Antenna:2G 1*1 + 5G 1*1 (80 MHz)
?Data transmission:Max 600 Mbps
?LE-Audio：No Support
?Application:DVR、OTT、DVB、IPC

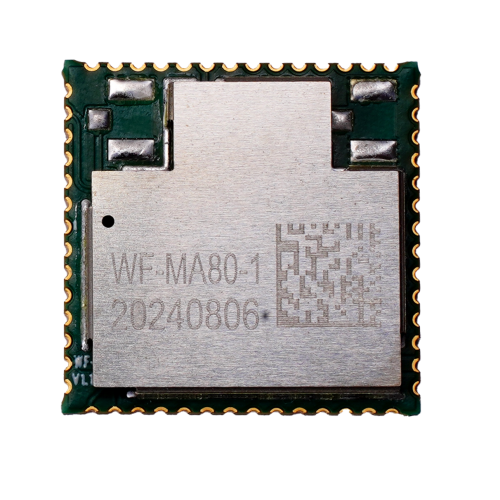

WF-MA80-1
Product introduction
Main parameter
?Chipset：AIC8800D80I
?Module dimension(mm)：17*17*2.4mm
?WiFi Versions:802.11 a/b/g/n/ac/ax
?BT Versions:V5.4
?Operating temperature: -40~85℃
?Mac:Single
?Bandwidth(MHz):20/40/80MHz
?Frequency Range(GHz):2.4/5GHz
?BT Protocol:HFP, A2DP, PBAP, SPP, GATT, etc
?Operating Voltage:3.3V
?IO Voltage:1.8/3.3V
?Encryption Mode:MPA3
?Interface:SDIO,UART,PCM/I2S,USB
?Antenna:2G 1*1 + 5G 1*1 (80 MHz)
?Data transmission:Max 600 Mbps
?LE-Audio：No Support
?Application:DVR、OTT、DVB、IPC

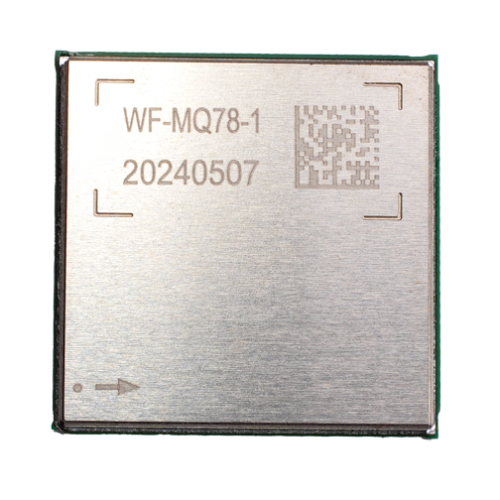

WF-MQ78-1
Product introduction
Main parameter
?Chipset：QCA6678
?Module dimension(mm)：23*23*2.9mm
?WiFi Versions:802.11 a/b/g/n/ac/ax
?BT Versions:V5.3
?Operating temperature: -40~85℃
?Mac:Single
?Bandwidth(MHz):20/40/80/160MHz
?Frequency Range(GHz):2.4/5/6GHz
?BT Protocol:HFP, A2DP, PBAP, SPP, GATT, etc
?Operating Voltage:1.9V,1.80V,1.35V,0.95V
?IO Voltage:1.8V
?Encryption Mode:MPA3
?Interface:PCIE,UART,PCM/I2S,USB
?Antenna:2G 1*1 + 5G 2*2 (80 MHz) or 6G 2*2 (160 MHz)
?Data transmission:Max 2882 Mbps
?LE-Audio：Support
?Application:Automative

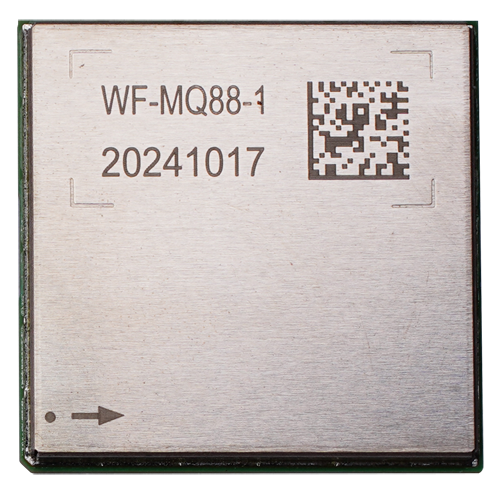

WF-MQ88-1
Product introduction
Main parameter
?Chipset：QCA6688
?Module dimension(mm)：23*23*2.9mm
?WiFi Versions:802.11 a/b/g/n/ac/ax
?BT Versions:V5.3
?Operating temperature: -40~85℃
?Mac:Dual
?Bandwidth(MHz):20/40/80/160MHz
?Frequency Range(GHz):2.4/5GHz
?BT Protocol:HFP, A2DP, PBAP, SPP, GATT, etc
?Operating Voltage:1.9V,1.80V,1.35V,0.95V
?IO Voltage:1.8V
?Encryption Mode:MPA3
?Interface:PCIE,UART,PCM/I2S,USB
?Antenna:2G 1*1 + 5G 2*2 (80 MHz) or 6G 2*2 (161 MHz)
?Data transmission:Max 2882 Mbps
?LE-Audio：Support
?Application:Automative
WF-MQ98-1
Product introduction
Main parameter
?Chipset：QCA6698
?Module dimension(mm)：23*23*2.9mm
?WiFi Versions:802.11 a/b/g/n/ac/ax
?BT Versions:V5.3
?Operating temperature: -40~85℃
?Mac:Dual
?Bandwidth(MHz):20/40/80/160MHz
?Frequency Range(GHz):2.4/5/6GHz
?BT Protocol:HFP, A2DP, PBAP, SPP, GATT, etc
?Operating Voltage:1.9V,1.80V,1.35V,0.95V
?IO Voltage:1.8V
?Encryption Mode:MPA3
?Interface:PCIE,UART,PCM/I2S,USB
?Antenna:2G 1*1 + 5G 2*2 (80 MHz) or 6G 2*2 (160 MHz)
?Data transmission:Max 3570 Mbps
?LE-Audio：Support
?Application:Automative
