?Chipset：QCA6698
?Module dimension(mm)：23*23*2.9mm
?WiFi Versions:802.11 a/b/g/n/ac/ax
?BT Versions:V5.3
?Operating temperature: -40~85℃
?Mac:Dual
?Bandwidth(MHz):20/40/80/160MHz
?Frequency Range(GHz):2.4/5/6GHz
?BT Protocol:HFP, A2DP, PBAP, SPP, GATT, etc
?Operating Voltage:1.9V,1.80V,1.35V,0.95V
?IO Voltage:1.8V
?Encryption Mode:MPA3
?Interface:PCIE,UART,PCM/I2S,USB
?Antenna:2G 1*1 + 5G 2*2 (80 MHz) or 6G 2*2 (160 MHz)
?Data transmission:Max 3570 Mbps
?LE-Audio：Support
?Application:Automative

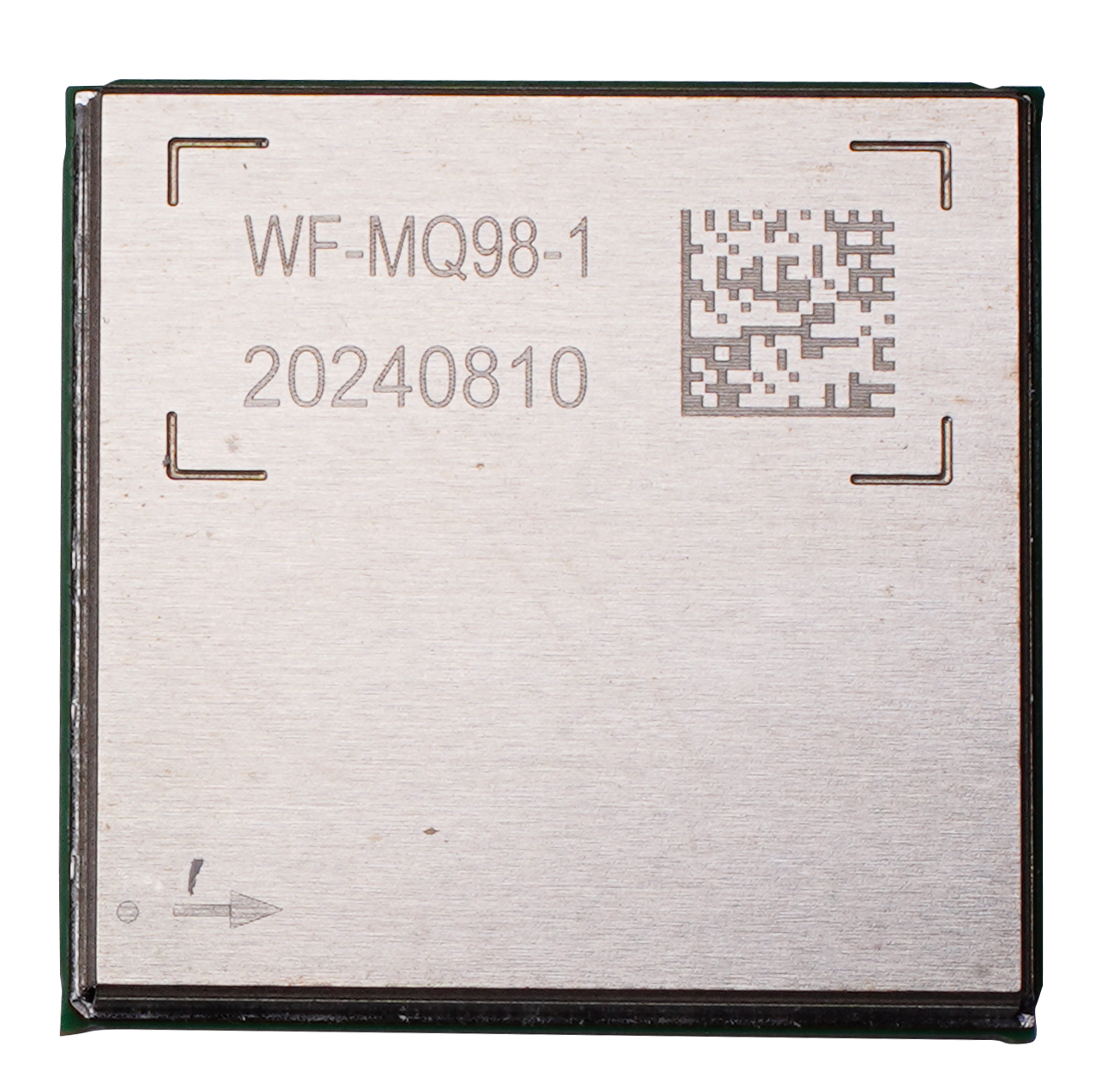

WF-MQ98-1 is a highly integrated combo module supporting 802.11ax Wi-Fi 6E, dual Mac 2.4GHz or 5GHz/6 GHz ,and Bluetooth v5.3 for automotive applications, the WLAN/BT chip is compliant with AECQ100 Grade 2 Qualification Specifications for Automotive Applications.
